Thin Concrete Garden Box – PART 4 CSA Cement

By Kent Gravelle

Garden Box Plans – the SIDES

The sides are made from a 2×4. Like the base, they are cut to length on the miter saw. Then ripped down to width on the table saw.

Following the garden box plans and ripping the sides on the table saw — Sides are ripped on table saw

The sides are laid out and the hole for the dowels drilled. I use a small bench top drill press but you could carefully freehand this or use a drill guide. You want the pipe holder pegs to be at right angles (or 90 degrees) to the sides.

form parts with glued in dowel — Sides and end block with dowel glued in

I like to drill pilot holes for the assembly screws at this time. I find it makes assembly easier.

the ENDS

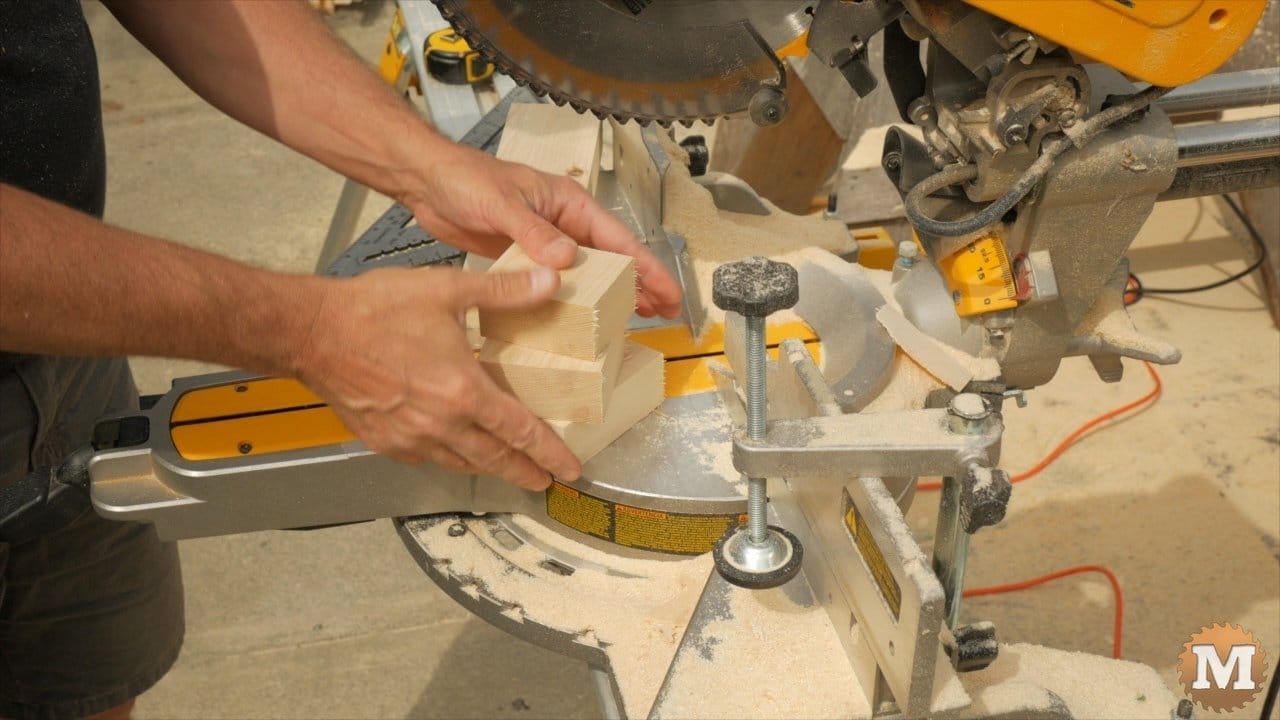

parts to make the ends of the concrete form — Three blocks for the end assemblies

To make the ends, I use a length of 2×4 (that’s already ripped to width) for the three pieces that make up the end assembly. These are cut on the mitre saw.

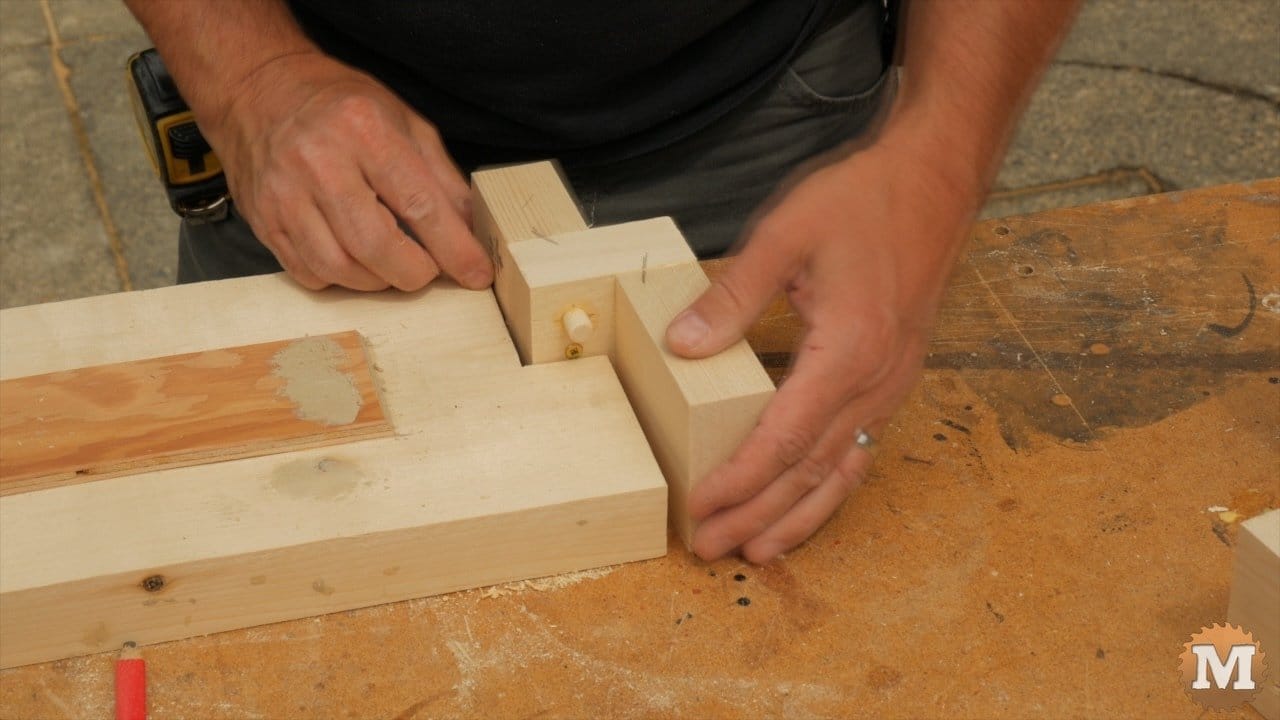

the assembled end of the form — End assembly fits end of base

One of these blocks I take to the drill press for the dowel hole. I’ll then drill the pilot holes for assembly with an eighth bit. Dowels are cut to length and glued and tapped into the holes. I assemble the ends with glue and screws checking that everything lines up well and is square.

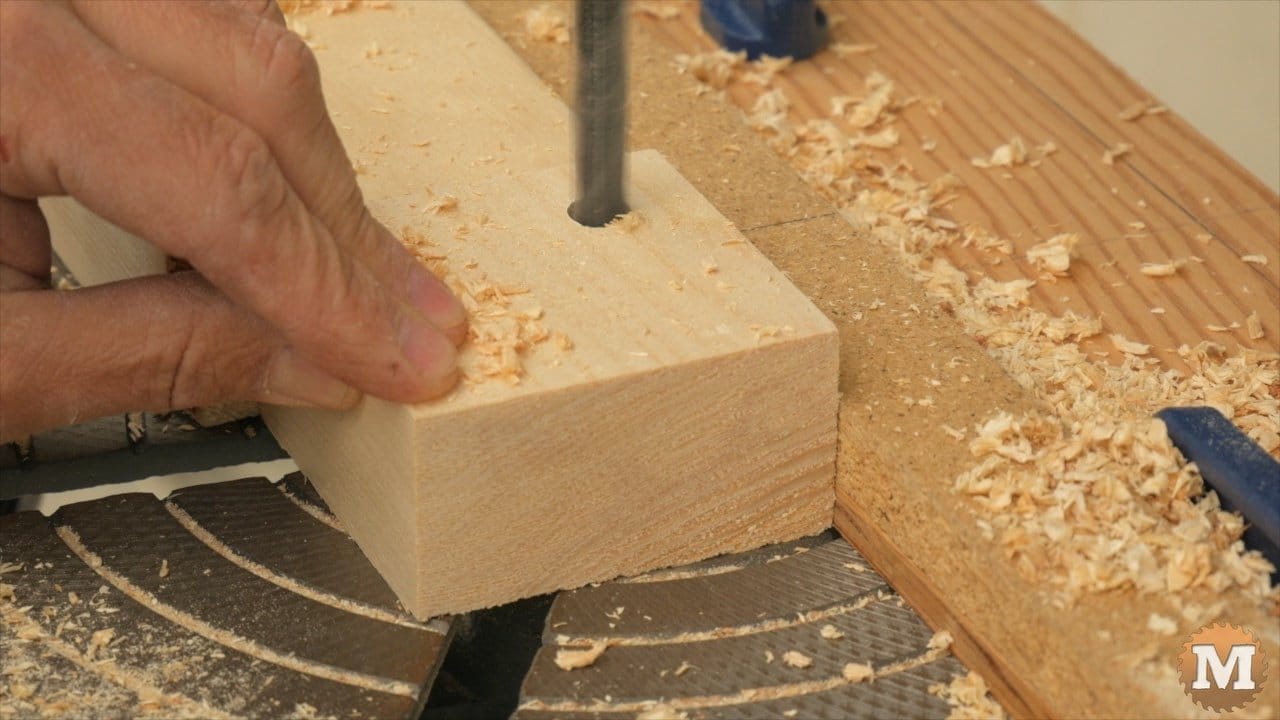

making holes on the drill press — Drilling dowel hole on drill press

The ends can also be made with two pieces instead of three if you’re okay drilling the dowel hole into end grain. Either method works.

TEST FIT the garden box form

With all the parts of the form ready, I assemble it and test the fit. I use self drilling cabinet screws for this.

assembling the concrete forms — Test fit all parts by assembling the form

I number each form and all the parts so I can reassemble it again the same way.

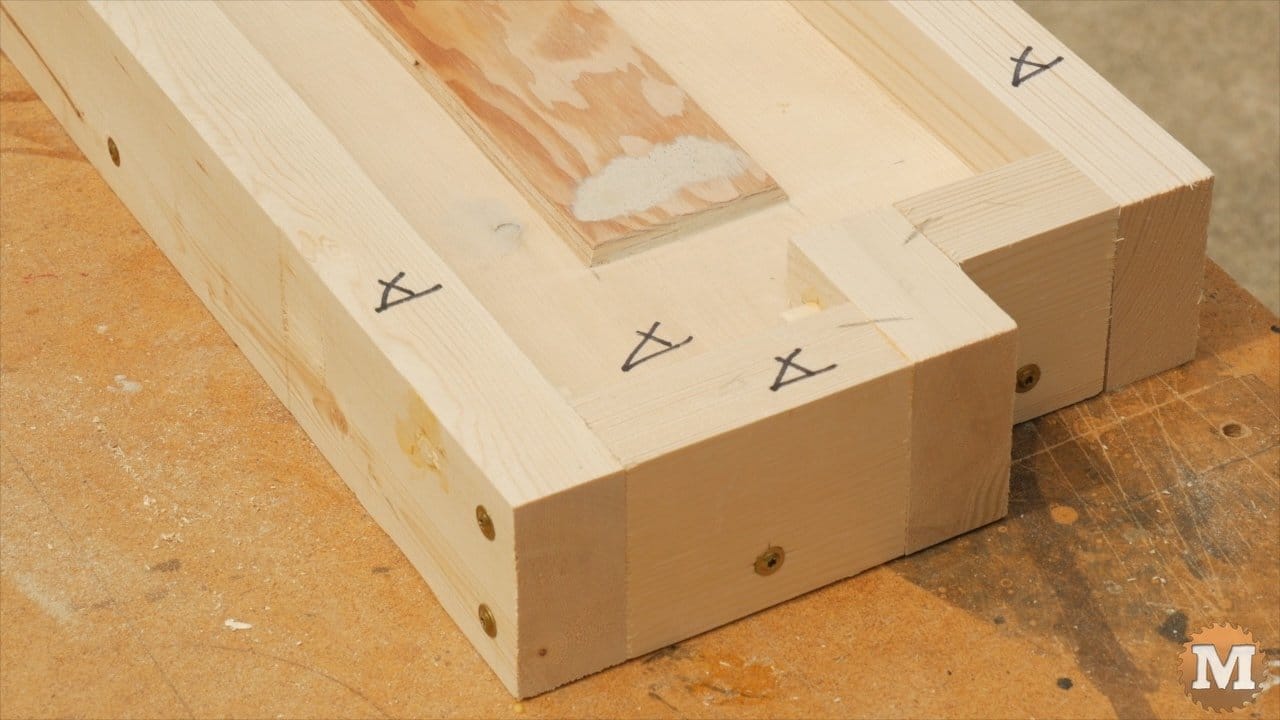

form parts labeled for easy reassembly — CSA Thin Concrete Garden Boxes – Parts labelled so can be reassembled the same each time

apply MINERAL OIL

I remove the screws and disassemble the form and apply two coats of Food Grade Mineral Oil. This oil is sold as Butcher’s Block or Cutting Board Oil. You can also buy it in Feed Stores for about half the price. I liberally apply it with a cloth. It doesn’t take long and each coat took about 10 minutes per form.

(Disclaimer: As an Amazon Associate I earn from qualifying purchases. Thank you for helping to support my content this way. )

Mineral Oil used to oil the form to release the concrete castings — Butcher’s Block Oil

FINAL ASSEMBLY

While this is drying (or soaking in) I’ll cut the plastic pipe to length. And I cut a section of galvanized wire fence to reinforce the center section of the panel. This will be laid in the concrete once it’s poured.

cutting plastic pipe on a miter saw — Cutting plastic pipes with miter saw

Now I reassembled the forms with the pipes on the dowel pins. I add some latex calking to make the forms water tight and to add a small fillet in the corners. This takes only a few minutes per form. This also fills any small gaps where the sides, ends, and base meet.

Oiled molds ready for concrete — Forms ready for concrete

Latex works well as it’s not overly strong and will allow you to disassemble the mold easily once the concrete sets up. I don’t use regular silicone for this. I find it too strong and will be difficult to remove later.

The garden box plans call for plastic pipe to be embedded in the concrete panel — Latex caulking in corners

I set the forms over sawhorses and level them in both directions. I cover the pipes with a cloth and spray the form with vegetable non-stick cooking spray.
