Pour Lightweight Concrete Garden Boxes – Vermiculite Aircrete PART 3

Strip Aircrete Forms

Removing aircrete panel from form a few days later
Removing aircrete panel from form a few days later

I remove all the screws from the form, gently pry off the sides, remove it from the base — and then remove the ends. And I was really happy with how they looked. It felt quite solid.

Now this panel was the most fun to make, and certainly the most unique of the options I tried.

I’d like to thank The Honey Do Carpenter and Aircrete Harry for their many great videos on everything to do with aircrete. I’ll put a link to their channels in the description as well.

Aircrete Results

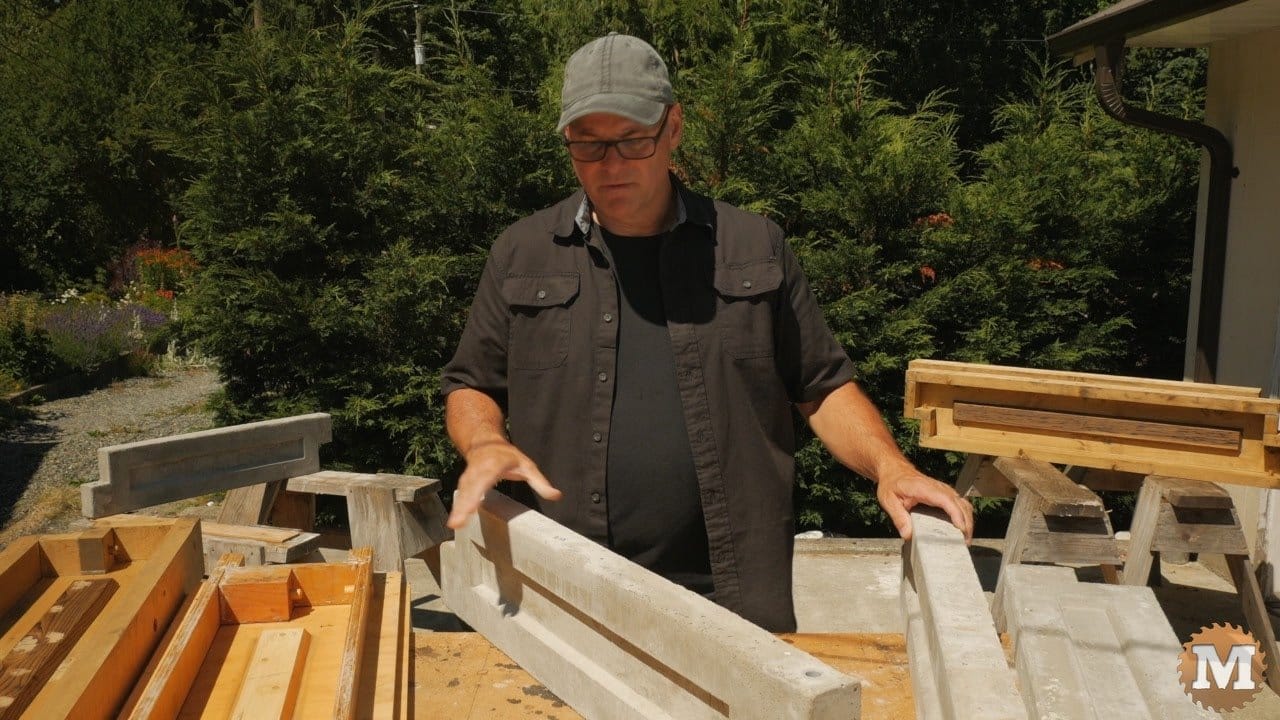

Super light aircrete garden box panels
Super light aircrete garden box panels

I was able to get a very dense foam without a foam generator. For my testing this worked well but, if I was going to get into making a lot of aircrete, I’d build or buy a foam generator like the ones that Harry or Darwin use.

I followed Aircrete Harry’s formulation for what he referred to as a “standard” mix. My aircrete held its shape and there was little if any bubble collapse as it was setting up.

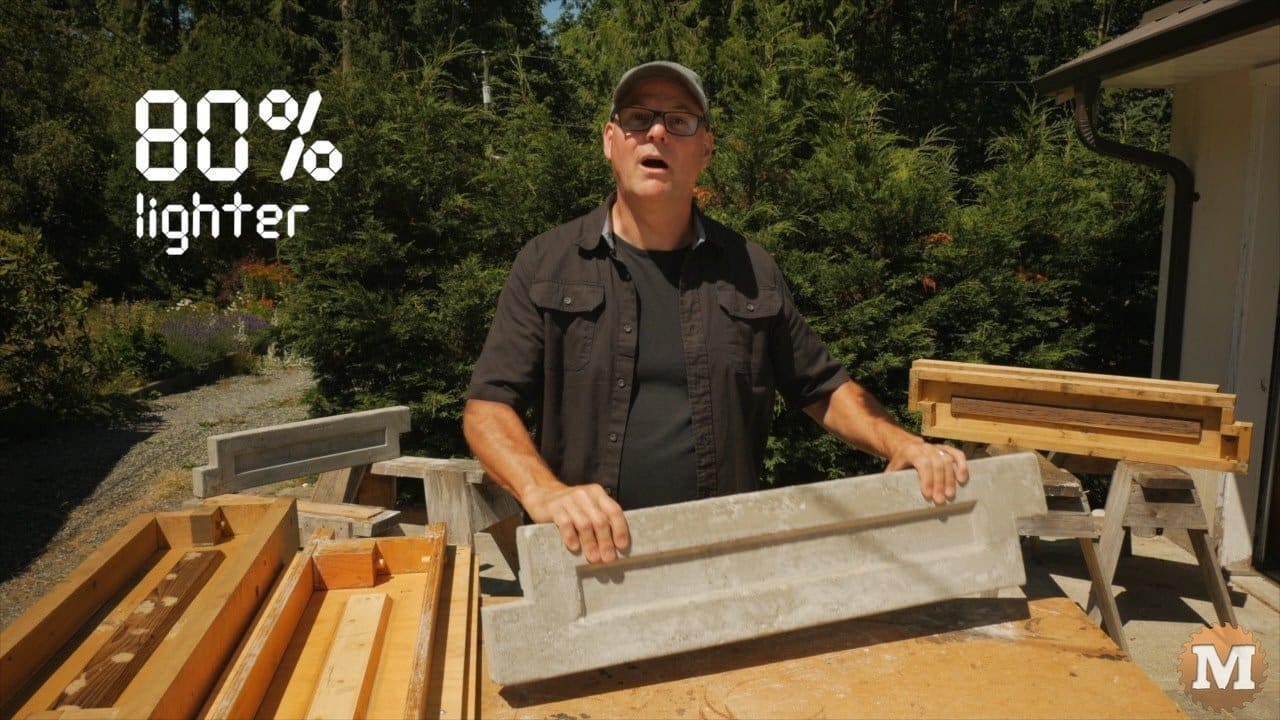

Aircrete was 80% lighter than regular concrete
Aircrete was 80% lighter than regular concrete

The aircrete panels came out of the forms well. The surface finish looked good and the bubbles looked uniform. The panels were very light, on average 80% lighter than regular concrete. Wow! That’s pretty impressive!

Closeup of cured aircrete panel
Closeup of cured aircrete panel

But, even after curing though, I found the panels were not very durable. There’s no sand or gravel to add that impact or abrasion resistance. I did a little test of the durability of all the panels by running a weed eater or line trimmer against them.

Air Crete Durability Testing

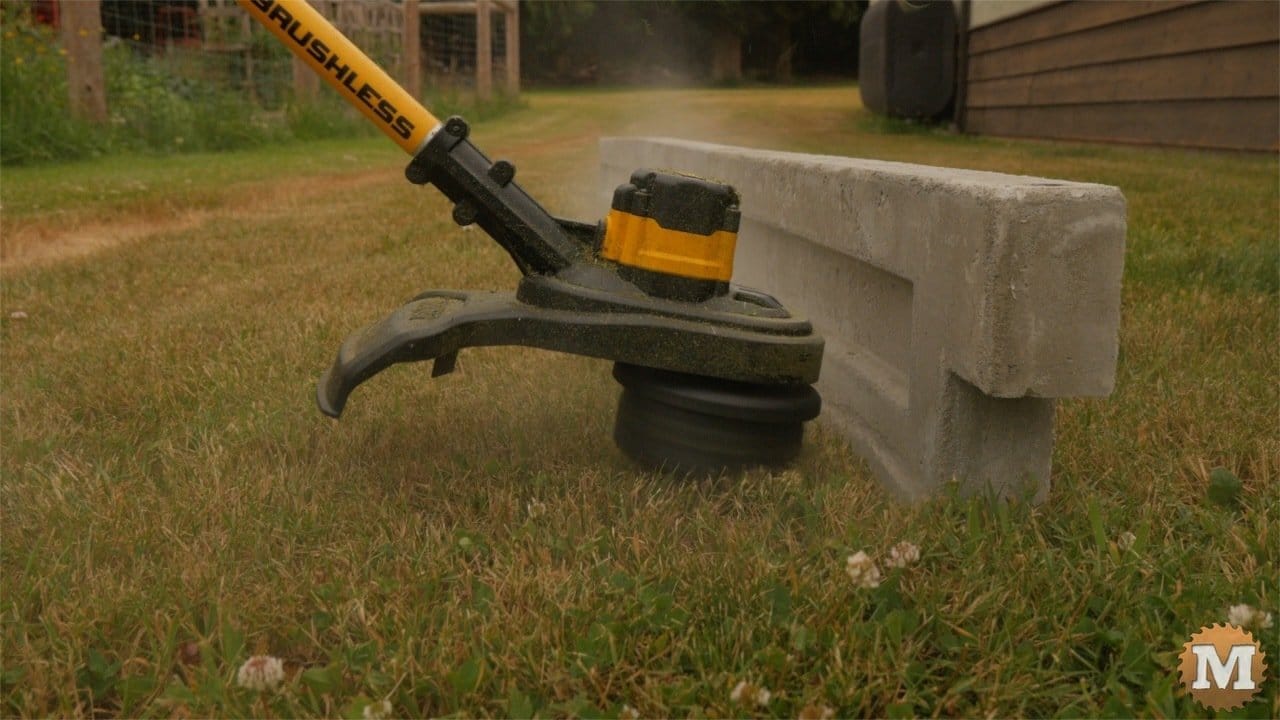

Durability test of all lightweight panels using a line trimmer
Durability test of all lightweight panels using a line trimmer

Not a scientific test, by any means, but something the panels may have to endure.

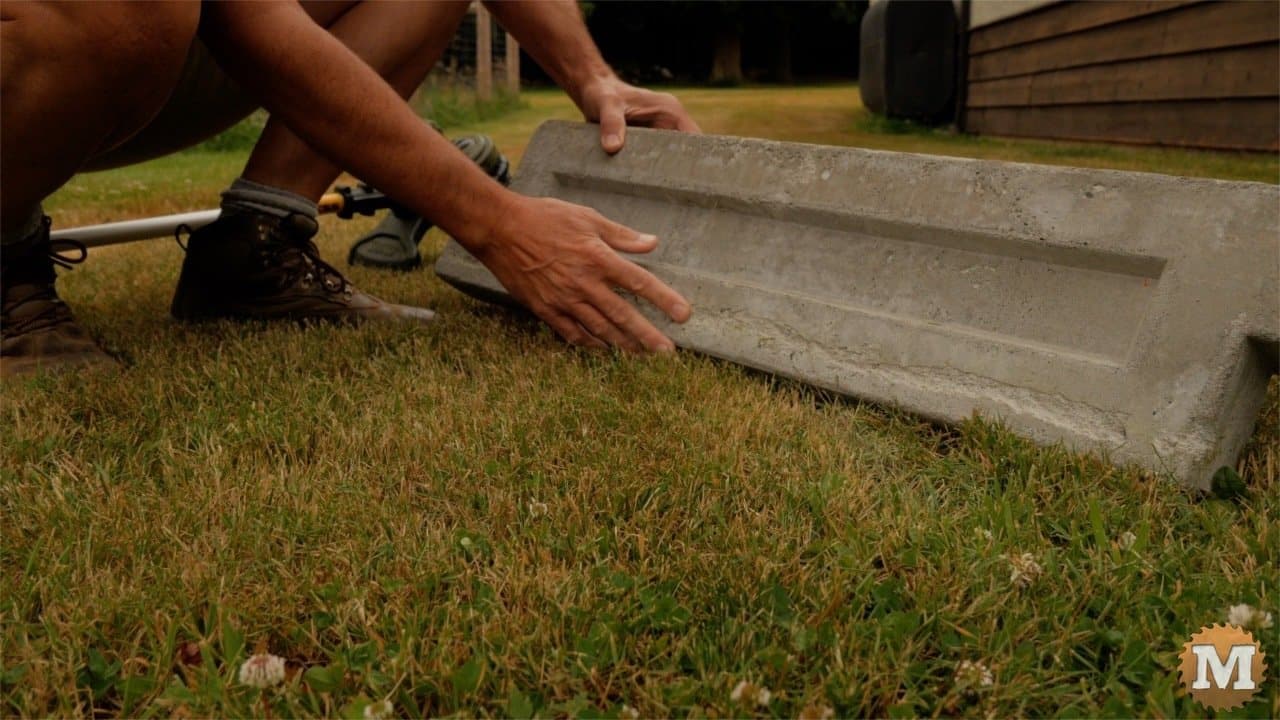

Aircrete panel was damaged by grass line trimmer
Aircrete panel was damaged by grass line trimmer

There was noticeable damage to the aircrete panel but the others fared okay.

(Disclaimer: As an Amazon Associate I earn from qualifying purchases. Thank you for helping to support my content this way. )

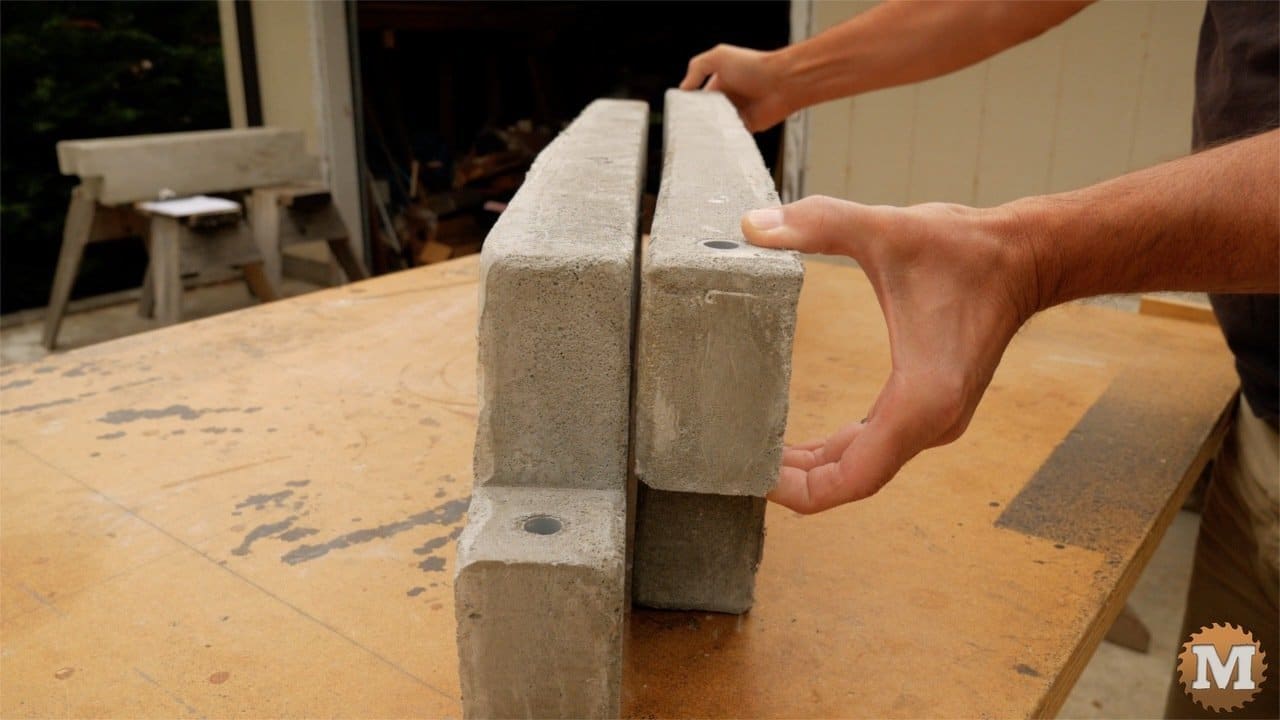

Aircrete panels bowed while curing
Aircrete panels bowed while curing

Another bigger issue is what was happening to the aircrete panels as they cured. They were bending and cracking.

Cracks formed along the upper inside edge of the panels as a result of the bowing
Cracks formed along the upper inside edge of the panels as a result of the bowing

I suspect that with a lower strength in general, the internal stresses caused by shrinking and drying led to this bowing along the length, and this lead to these cracks forming. This is what I think is happening anyway.

Perhaps a mix with a greater ratio of cement to foam would prevent this. It would bring the weight up a bit. And there’s still the durability issue. If you have made these panels with aircrete, or you know how to prevent this warping and cracking then leave me a comment below.

FINAL THOUGHTS

So, I think for me, of these three, the best formulation for ease of mixing, weight reduction, AND durability is the vermiculite blend. If weight was an issue for my concrete panels I’d opt for the vermiculite mix.

Vermiculite blend had the best balance of weight reduction and durability in my opinion
Vermiculite blend had the best balance of weight reduction and durability in my opinion

I’m not saying that the lava rock mix or aircrete are not worth trying, because you might get better results than I did.

There’s also lightweight concrete ready-mix bags made by Sakrete but they’re not available in my area so I was unable to test it. So that might be a good option too.

One last thing – as I was doing these tests I came up with another way of making the panels that’s faster and lighter without sacrificing ANY strength OR durability. And that is coming right up in part 4.

So I hope you have enjoyed this post, and thank you so much for reading. If I make any further improvements or changes I’ll post them here.

And, while you are here, please hit the Support Link to help us make more projects and videos like this. We really appreciate anything you can do to help us out!
